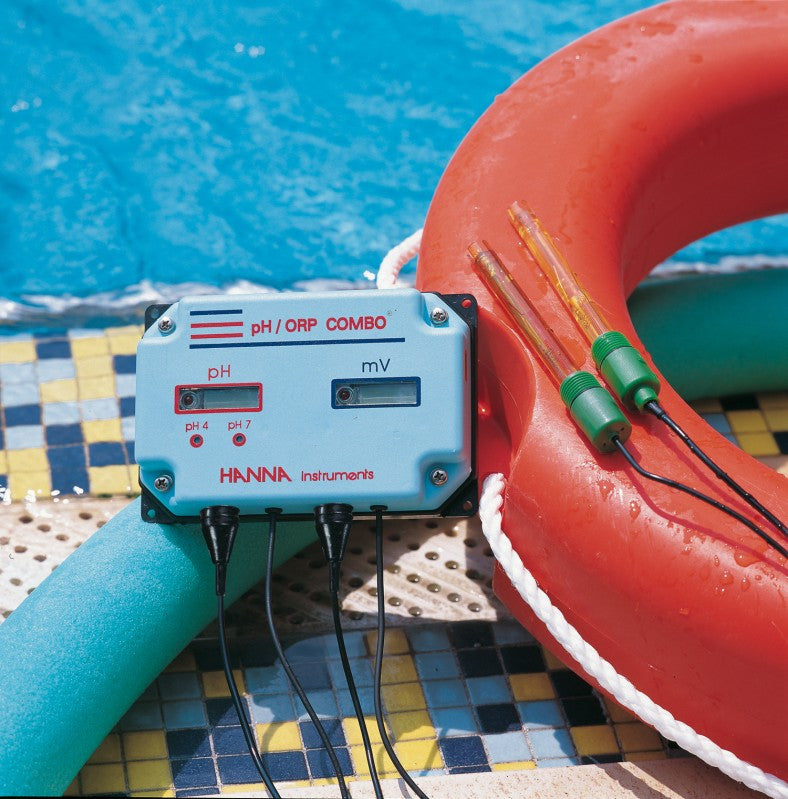

HANNA HI981406 pH/mV-Indicator with LED-Alarm COMBO

Previous Product | Next Product
Product Description

HI 981406-02 has been specially designed for water treatment and swimming pool applications where both pH and ORP need to be monitored. Instead of sourcing two meters. users can now continuously measure both pH and ORP with HI 981406-02.

There are two separate adjustable set points for pH and ORP. Once the pH set point is exceeded. the appropriate LED light will come on to alert the operator. Likewise. once the ORP level drops below the set point. the red ORP light will stay on.

HI 981406-02 is supplied with HI 1283 ground probe. The HI 1283 ground probe provides users with more reliable readouts by suppressing current effects. which are found in pools. The optional HI 2114P/2 pH electrode and HI 3214P/2 ORP electrode are designed specifically for swimming pools. Both probes are constructed with a specially designed fiber salt-bridge making each particularly resistant to clogging in pools.



Order Information:   HI 981406-02 (230V) are supplied with HI 1283 grounding bar. HI 70004 pH 4.01 buffer solution sachet. HI 70007 pH 7.01 buffer solution sachet. calibration screwdriver. 12 VDC adapter and instructions.

Specification :

Range pH 0.0 to 14.0 pH
Range mV -999 to 999 mV
Resolution pH 0.1 pH
Resolution mV 1 mV
Accuracy pH ±0.2 pH
Accuracy mV ±5 mV
pH Calibration   manual. 1 or 2 points
Setpoint   pH: adjustable from 5.0 to 9.0 pH; ORP: adjustable from 350 to 850 mV
Alarm   2 LED's (1 for pH and 1 for ORP) light up when: pH value > setpoint and/or ORP value < setpoint
Probe   HI 2114P/2 replaceable pH electrode (not included) HI 3214P/2 replaceable ORP electrode (not included); HI 1283 potential matching pin with 2 m (6.6') cable (included)
Input Impedance   1012 Ohm
Power Supply   12 Vdc power adapter (included)
Environment   0 to 50°C (32 to 122°F); RH max 95%
Dimensions   165 x 110 x 35 mm (6.4 x 4.3 x 1.4")
Weight   300 g (10.6 oz.)


Vendor: Hanna Instruments

This product is available upon request. Contact us for more information.
