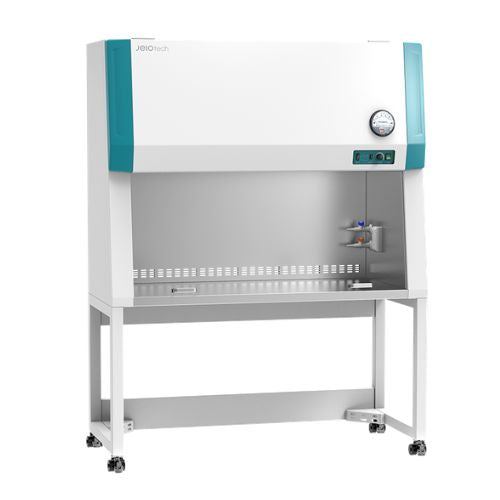

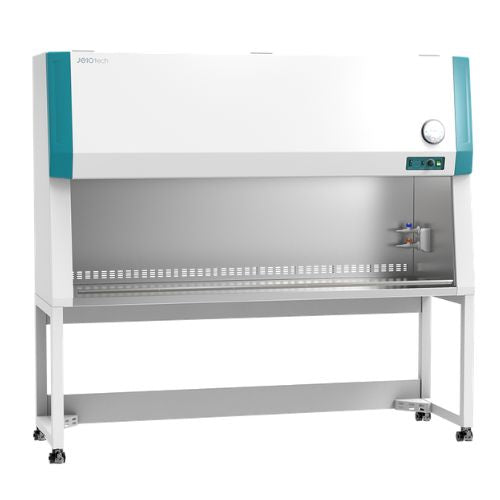

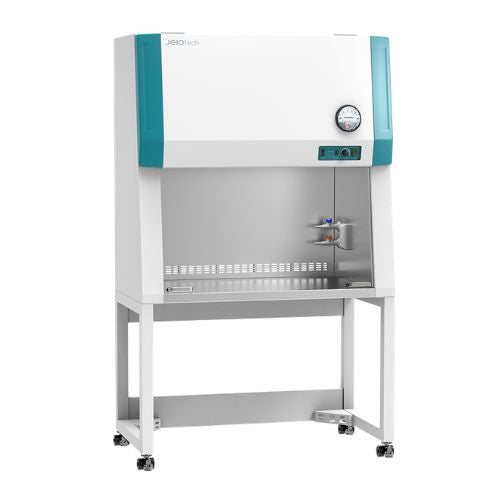

LAB COMPANION Basic Clean Benches Vertical

Previous Product | Next Product
Product Description

Vertical laminar flow clean benches offer quick operation by simple-adjustable analog control.

ISO class 4 air cleanliness as per ISO 14644-1. Class 10 as per US Federal Standard 209E. Nominal down flow velocity. (max. 0.45 m/sec)

Performance

  • ISO class 4 (US class 10) HEPA filter for optimal protection against cross-contamination.
  • 0.3 μm and larger particulates are removed with 99.99% efficiency, leak-tight HEPA filter which satisfying class 10. (US Federal Standard 209E) (average life span of HEPA filter: 3 years – it depends on the test room conditions)
  • High-quality polyester fiber pre filter (with minimal pressure loss and 85% arrestant on the A.F.I. test) for trapping larger particles and increasing the life of the main HEPA filter.
  • Exclusive diffusing muffler structure forms high quality laminar flow.
  • Quiet and comfortable working environment. (less than 65dB)

Covenience

  • Built-in differential pressure gauge for easy checking HEPA filter condition.
  • Comfortable front access to cartridge type of filters for easy replacement.
  • Easy blower speed adjustment by the control panel.
  • Highly durable, rust-free, and easy-to-clean grade 304 stainless steel work surface.
  • The inner left side magnetic board allows some memos and small tools.

Safety

  • UV-blocking and impact-resistant tempered glass door.
  • If the sash is opened during UV-lamp operation, UV lamp automatically turns off to protect users.
  • Lighting mode selection by 3-position toggle switch (UV / off / fluorescent) preventing harmful UV exposure.
  • Smoothly sliding front door stoppable at any height for user’s safety and easy transport of equipment into the workspace.
  • Protection against over-current.
Model BC-01B BC-11B BC-21B
Air flow type Vertical laminar flow
Air volume (minimum / maximum) 0 to 1020 cmh / 0 to 600 cfm 0 to 2040 cmh / 0 to 1200 cfm
Laminar airflow velocity (m / s / fpm) 0.3 / 59 0.45 / 89 0.3 / 59
Air cleanliness within work space ISO 14644-1 class 4, US Federal Standard 209E class 10
Filters HEPA filter
Typical efficiency of 99.99% on 0.3㎛ (US MIL- STD -282)
; Micro glass fiber Media, Particle board, AL separator, Neoprene gaskets
Pre filter
Polyester fibers with an filter efficiency of 85% (A·F·I TEST)
; Aluminum frame, Polyester fiber media
Noise level Typically < 65dB at blower speed
Materials Main body Steel powder coating
Work surface Stainless steel, grade 304, brushed finish
Windows (front / side) Colorless and transparent UV absorbing 5mm tempered glass
Illumination Intensity (lux) > 650
Fluorescent lamp (W) 30 x 2ea 32 x 2ea
Electronically ballasted Fluorescent Lamp
UV lamp (W) 25 x 1ea 30 x 1ea 25 x 2ea
Electronically ballasted UV Lamp
Electric socket outlets 230V socket

Dimension

(W×D×H)

 Interior (mm / inch) 945 x 585 x 670
/ 37.2 x 23.0 x 26.4		 1245 x 585 x 670
/ 49.0 x 23.0 x 26.4		 1845 x 585 x 670
/ 72.6 x 230 x 26.4
Exterior without stand (mm / inch) 1135 x 620 x 1150
/ 44.7 x 24.4 x 45.3		 1435 x 620 x 1150
/ 56.5 x 24.4 x 45.3		 2035 x 620 x 1150
/ 80.1 x 24.4 x 45.3
Exterior with stand (mm / inch) 1135 x 620 x 1860
/ 44.7 x 24.4 x 73.2		 1435 x 620 x 1860
/ 56.5 x 24.4 x 73.2		 2035 x 620 x 1860
/ 80.1 x 24.4 x 73.2
Net weight (body) (kg / lbs) 140 / 308.6 185 /407.9 225 / 496
Net weight (body + stand) (kg / lbs) 170 / 374.8 215 / 474 255 / 562.2

Electrical requirements

(230V, 1ph)

60Hz /      1.25 A

50Hz /    1.38 A

60Hz /    1.57 A

 50Hz /    1.73 A 60Hz /    2.09 A 50Hz /    2.30 A
Cat. No. AAHA6012K AAHA6012K AAHA6022K AAHA6022K AAHA6032K AAHA6032K

Electrical requirements

(120V, 1ph)

 60Hz / 2.62 A 60Hz / 3.27 A 60Hz / 4.36 A
Cat. No. AAHA6013U AAHA6023U AAHA6033U
Vendor: Jeio Tech

This product is available upon request. Contact us for more information.
